Estimation of Recoil Energy of Water-Jet Disruptor

Bhupesh Ambadas PARATE; Bhupesh Ambadas PARATE

Download

This publication is protected and available only for logged users.

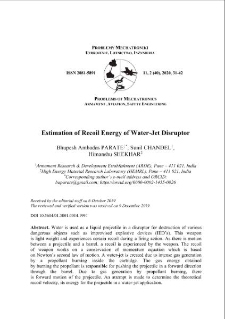

Title: Estimation of Recoil Energy of Water-Jet Disruptor

Abstract:

Water is used as a liquid projectile in a disruptor for destruction of various dangerous objects such as improvised explosive devices (IED’s). This weapon is light weight and experiences certain recoil during a firing action. As there is motion between a projectile and a barrel, a recoil is experienced by the weapon. The recoil of weapon works on a conservation of momentum equation which is based on Newton’s second law of motion. A water-jet is created due to intense gas generation by a propellant burning inside the cartridge. The gas energy obtained by burning the propellant is responsible for pushing the projectile in a forward direction through the barrel. Due to gas generation by propellant burning, there is forward motion of the projectile. An attempt is made to determine the theoretical recoil velocity, its energy for the projectile in a water-jet application. The minimum and maximum recoil velocities of a water-jet varies from 2.311 m/s to 2.611 m/s. The order of magnitude for the recoil velocities is small and can be compared with a recoil of small calibre weapons that these weapons experienced during a firing mode. Based on recoil velocities, minimum and maximum kinetic energies of recoil parts are determined as 3.73 kJ and 4.77 kJ, respectively. The maximum gas force experienced by the projectile is worked out as 13.46 kN. The minimum and maximum energies to overcome the resistance force are determined as 14.657 J and 18.711 J, respectively. A small exercise for spring design is also covered.
