Obiekt

Tytuł odmienny:

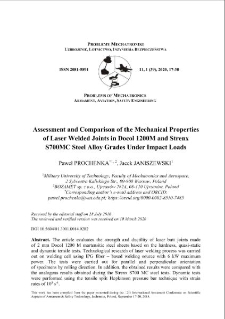

Ocena i porównanie właściwości mechanicznych połączeń spawanych wiązką laserową stali Docol 1200M i Strenx S700MC w warunkach obciążenia udarowego ; Ocena i porównanie właściwości mechanicznych połączeń spawanych wiązką laserową stali Docol 1200M i Strenx S700MC w warunkach obciążenia udarowego

Współtwórca:

Jacek JANISZEWSKI ; Jacek JANISZEWSKI

Abstrakt:

The article evaluates the strength and ductility of laser butt joints made of 2 mm Docol 1200 M martensitic steel sheets based on the hardness, quasi-static and dynamic tensile tests. Technological research of laser welding process was carried out on welding cell using IPG fiber – based welding source with 6 kW maximum power. The tests were carried out for parallel and perpendicular orientation of specimens by rolling direction. In addition, the obtained results were compared with the analogous results obtained during the Strenx S700 MC steel tests. Dynamic tests were performed using the tensile split Hopkinson pressure bar technique with strain rates of 103 s-1. The obtained results showed that the strength of Docol 1200 M under dynamic tensile test conditions are similar to the material strength under static tensile test conditions. However, due to the breaking of the specimens in the heat affected zone, the strength of the welded joint is much lower than in base material, which was not observed during the Strenx S700 MC steel tests.
; The article evaluates the strength and ductility of laser butt joints made of 2 mm Docol 1200 M martensitic steel sheets based on the hardness, quasi-static and dynamic tensile tests. Technological research of laser welding process was carried out on welding cell using IPG fiber – based welding source with 6 kW maximum power. The tests were carried out for parallel and perpendicular orientation of specimens by rolling direction. In addition, the obtained results were compared with the analogous results obtained during the Strenx S700 MC steel tests. Dynamic tests were performed using the tensile split Hopkinson pressure bar technique with strain rates of 103 s-1. The obtained results showed that the strength of Docol 1200 M under dynamic tensile test conditions are similar to the material strength under static tensile test conditions. However, due to the breaking of the specimens in the heat affected zone, the strength of the welded joint is much lower than in base material, which was not observed during the Strenx S700 MC steel tests.

Miejsce wydania:

Warszawa
; Warszawa

Wydawca:

Wojskowa Akademia Techniczna ; Wojskowa Akademia Techniczna

Data utworzenia:

2010 r.0 ; 2010 r.0

Data złożenia:

2018-07-28 ; 2018-07-28

Data akceptacji:

2020-03-10 ; 2020-03-10

Data wydania:

2020-03-31 ; 2020-03-31

Rozmiar:

B5 ; B5

Identyfikator:

oai:ribes-88.man.poznan.pl:2573

Sygnatura:

DOI 10.5604/01.3001.0014.0282 ; DOI 10.5604/01.3001.0014.0282

ISSN elektroniczny:

2720-5266 ; 2720-5266

ISSN drukowany:

2081-5891 ; 2081-5891

Język:

angielski ; angielski

Właściciel praw:

Wojskowa Akademia Techniczna ; Wojskowa Akademia Techniczna

Strona początkowa:

17 ; 17

Strona końcowa:

30 ; 30

Tom:

11 ; 11

Słowa kluczowe:

laser welding, split Hopkinson pressure bar, high-strength steel, energy absorber ; laser welding, split Hopkinson pressure bar, high-strength steel, energy absorber
